SXG-Y型液压尾管悬挂器
Model SXG-Y Hydraulic Liner Hanger

特点   Characteristics

1.该悬挂器采用双锥双卡瓦结构，悬挂能力强，座挂成功率更高。
2.密封件采用氟橡胶，耐温可达200度。
3.液缸、本体等主要零部件均选用合金结构钢、保证其力学性能。
1. The dual-cone&ldual-cylinder structure allows higher hangingcapacity
and higher hanger setting success ratio.Liner weight isdistributed onto the
internal wall of the previous casing moreevenly.
2. The seal is made of fluororubber,which can withstand temperatureup to
200 degrees.
3.The hydraulic cylinder,the body and other main parts of the linerhanger
are made of high-strength structural alloy steel,so as toguarantee its mecha
nical properties.

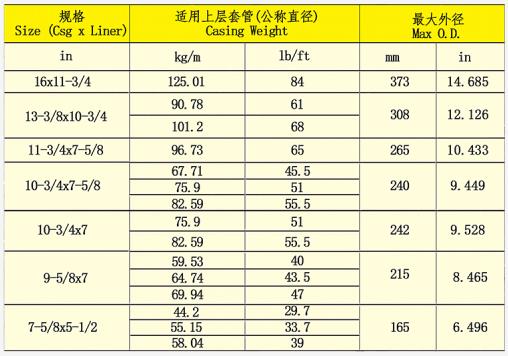

技术参数   Technical parameter

*可根据客户需求，设计加工其它规格产品*
